Listing Type :

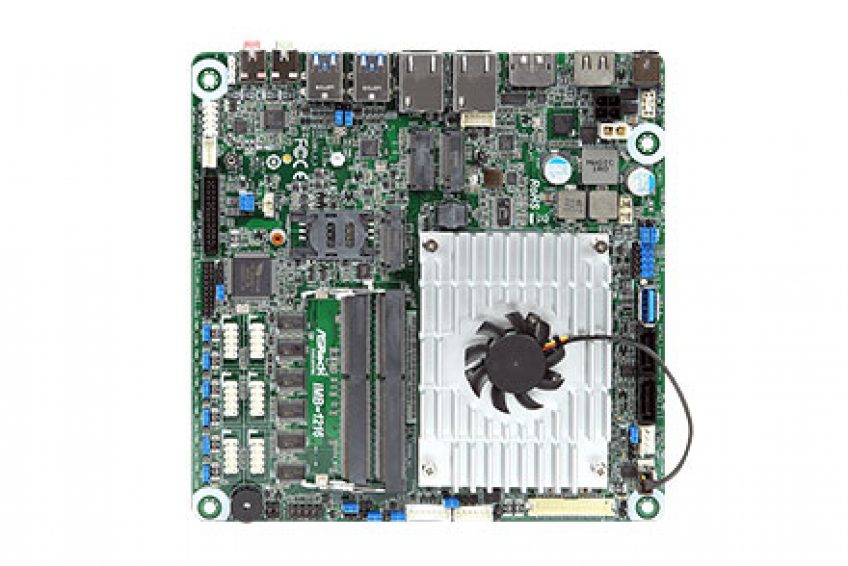

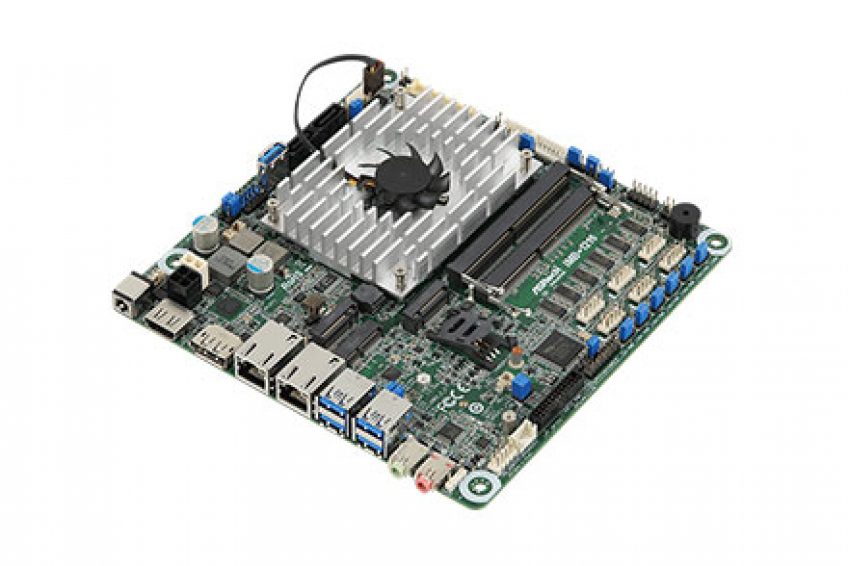

Industrial Embedded Computing / MiniITX Motherboard
- Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors
- -IMB-1216V (i3-8145UE)
- -IMB-1216M (i5-8365UE)
- -IMB-1216P (i7-8665UE)
- Supports Dual Channel DDR4 SO-DIMM 2400 ,up to 32GB

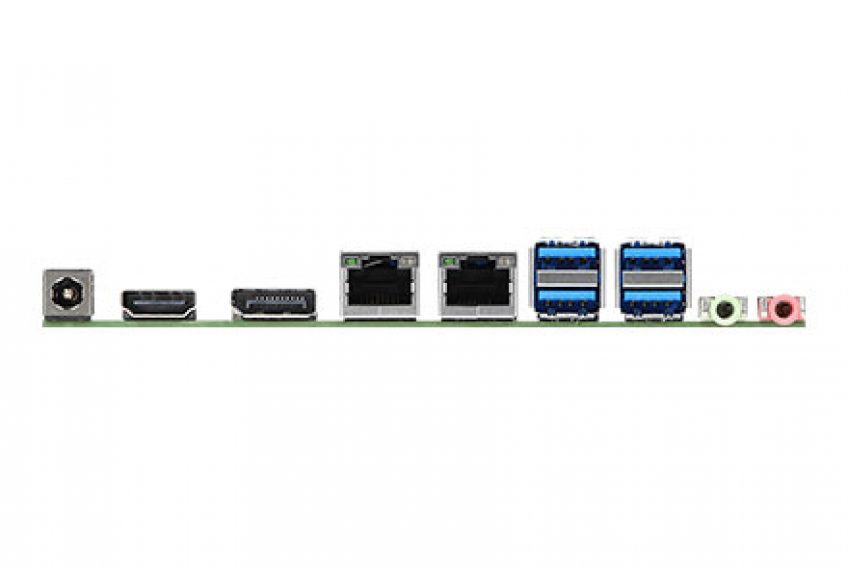

- 1 x Displayport or VGA, 1 x HDMI, 1 x LVDS or eDP
- 5 xUSB 3.1, 3 xUSB 2.0, 2 x SATA3, 6 x COM
- 1 x M.2 Key E, 1 x M.2 Key B, 1 x M.2 Key M
- 1 x Intel® LAN, 1 x Realtek LAN
- 1 x TPM Header (IMB-1216V), 1 x TPM 2.0 IC onboard (IMB-1216M/P)
- +12V~28V DC-in (DC Jack / 4-pin ATX PWR Con) (Option: +12V)
