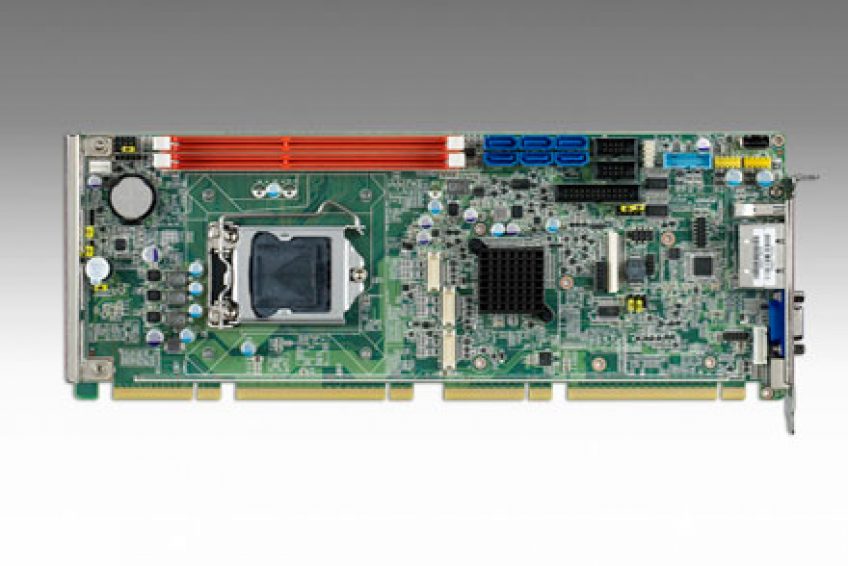

PCE-5128

Single Board Computers

PICMG 1.3 Full-Size Single Board Computers

4th Generation Intel® Core™ processor-based platform

• Supports Intel Core i7/i5/i3 LGA1150 processors with Q87
• Dual Channel (Non-ECC) DDR3 1333/1600 up to 16 GB
• Supports USB3.0, SATA3.0, SW Raid 0, 1, 5, 10
• Supports out-of-band remote management with AMT9.0 and IPMI
• Supports Advantech TPM module (LPC I/O)
• Software APIs: Watchdog / H/W Monitor / GPIO
• Utilities: Monitoring
